HOWO 4X2 crane truck 10 ton

Category： Side loader semi trailer
INQUIRY EMAIL

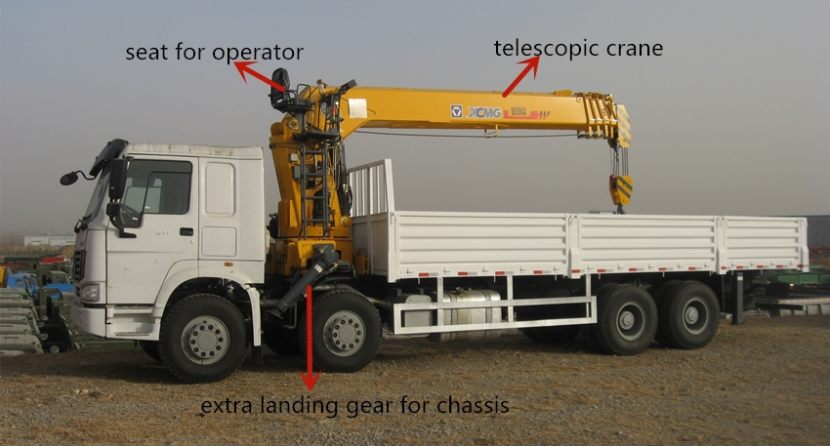

HOWO 4X2 cargo truck with crane

HOWO 4X2 Crane Truck

Cabin	Driving type 4x2 RHD 2080 cabin two seats with one bed and A/C, 70°tillable to the front
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	8995×2400×3400
	Wheel base (mm)	5200
	Wheel track (front/rear) (mm)	1605/1520
	Approach/Departure angle(°)	27/20
Weight in KGS	Tare Weight	5600
	payload	10000
	Front axles loading capacity	1x3600
	Rear axles loading capacity	1x10500
Max. driving speed（km/h）		90
Engine	Brand	Yuchai
	Type	4 cylinder in line, Turbocharged and Intercooled
	Model	4100
	Horse Power（HP)	160
	Emission standard	Euro Ⅱ
Gearbox	DC6J65TC gearbox, 6-speed Forwards gear & 1 reverse gear
Tire	9.00R20 7pcs including one spare tire
Carriage Size(mm)	5900×2300×500
Crane specifications	Brand : XCMG
Crane specifications	Foldable

Specifications of the Foldable CraneS

Truck with loading crane	ITEM	UNITS	Crane model
	ITEM	UNITS	SQ3.2ZK1
	Max lifting capacity	KG	3200
	Max lifting capacity	T.M	6.72
	Recommend power	KW	14
	Max oil flow	L/MIN	25
	Max pressure	MPA	22
	Oil Tank Capacity	L	60
	Installation Space	mm	850
	Rotation angle	DEGREE	370

High lights:

1. Wider working radius.

2. It provides more vertical take-off and landing control.

3. Easier to load.

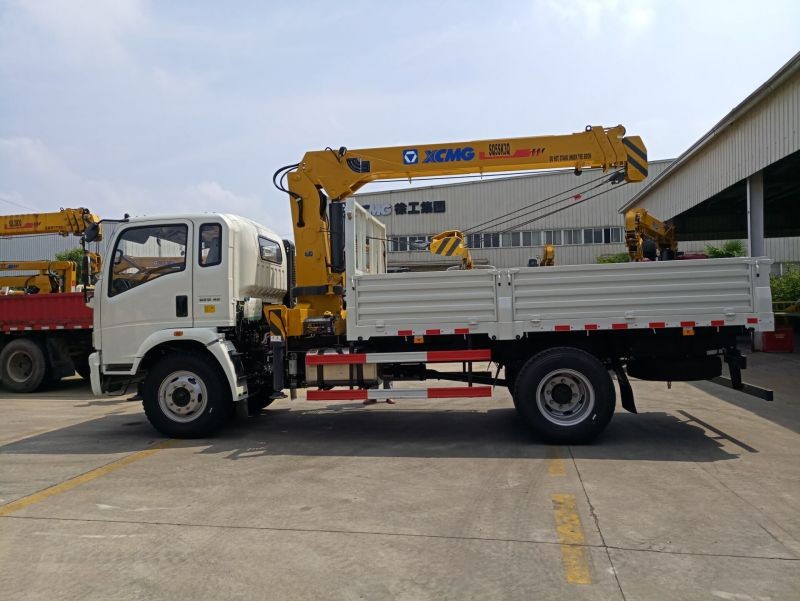

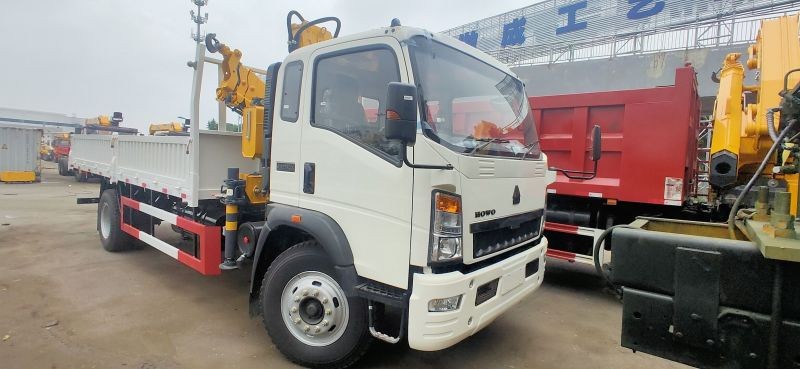

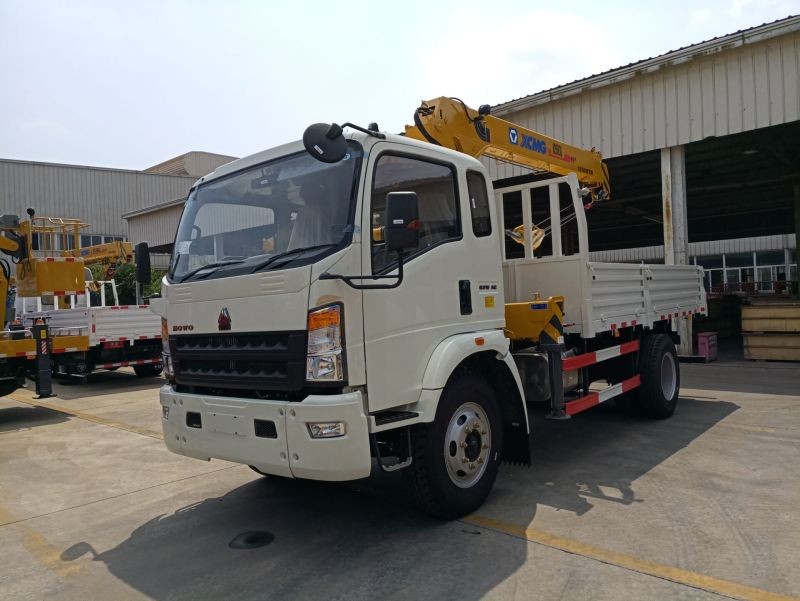

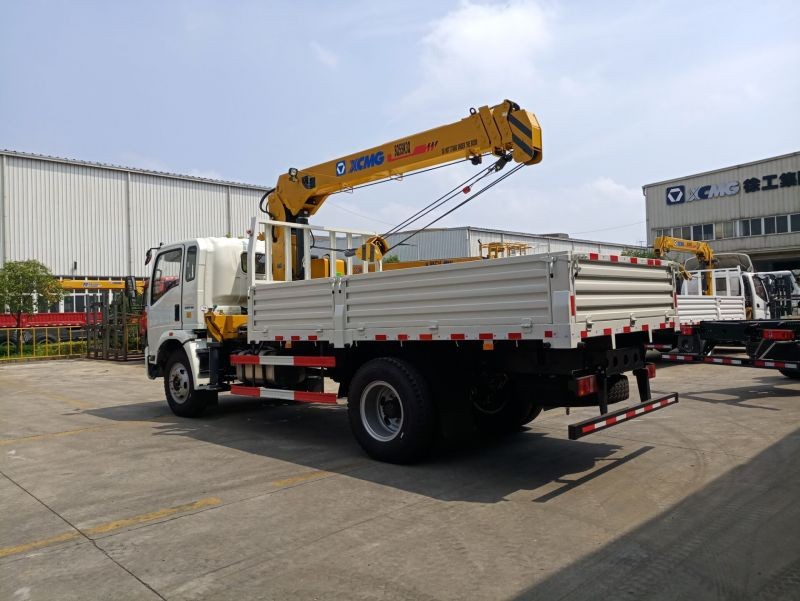

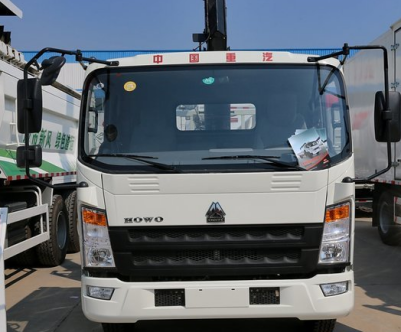

Product Details

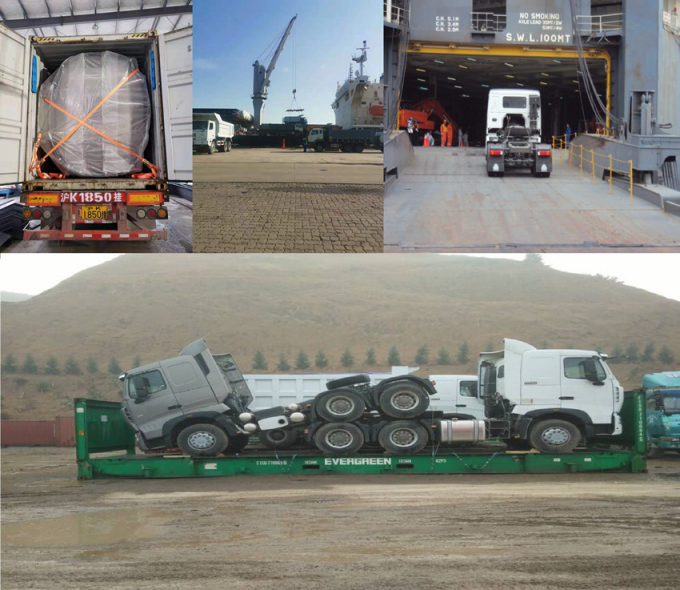

The shipment:

Most of the boom trucks are suitable for RORO shipment and bulk shipment. We have professional logistic department to provide efficient and economical service.

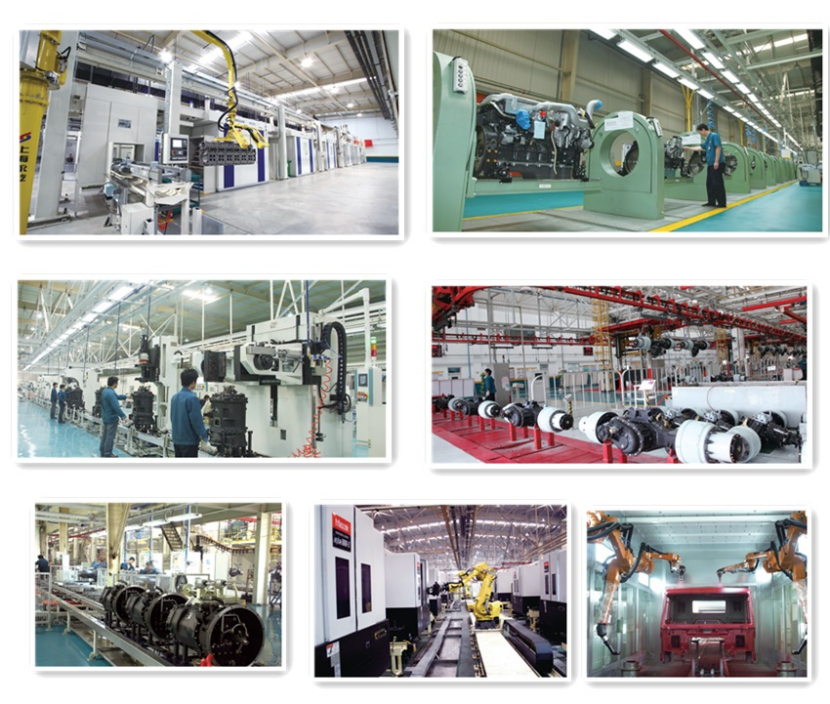

Factory

FAQ

1. How to order ?

Step 1, please tell us what model and quantity you need;

Step 2, then we will make a Pl for you to confirm the order details;

Step 3, when we confirmed everything, can arrange the payment;

Step 4, finally we deliver the goods within the stipulated time.

2. What is your payment term?

Our payment term is T/T- 30% deposit, balance paid before delivery. Or 100% irrevocable L/C at sight.

3.How about the price?

We are factory and able to give you the lowest price than market one, and we have a policy that for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.

4. Do you provide equipment operation training?

Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

5.What kind of logistic service do you supply?

FOB,CIF,DAR,ETC.
