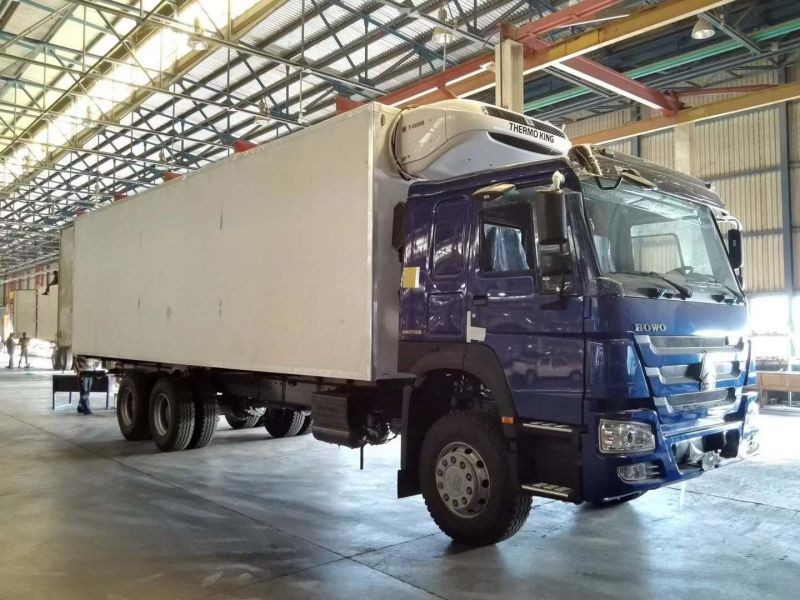

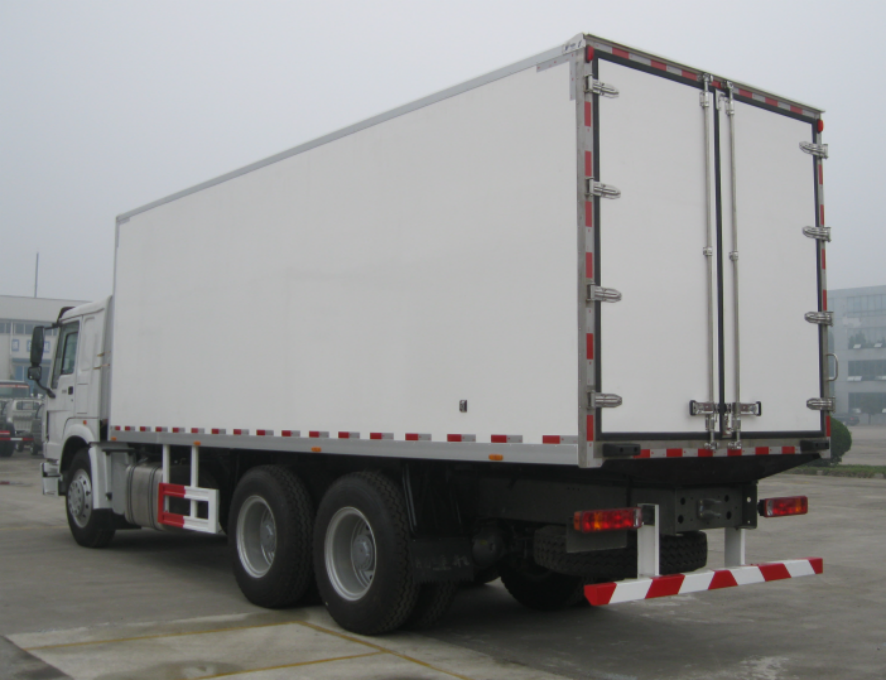

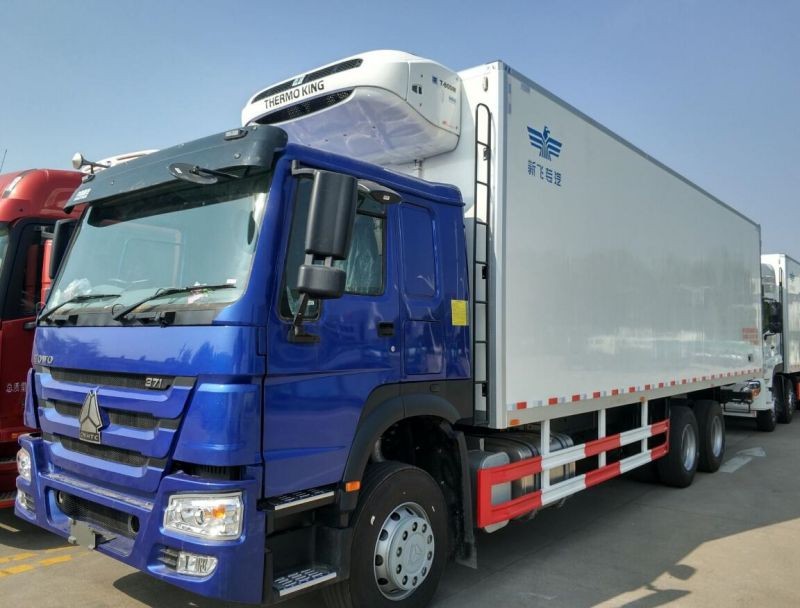

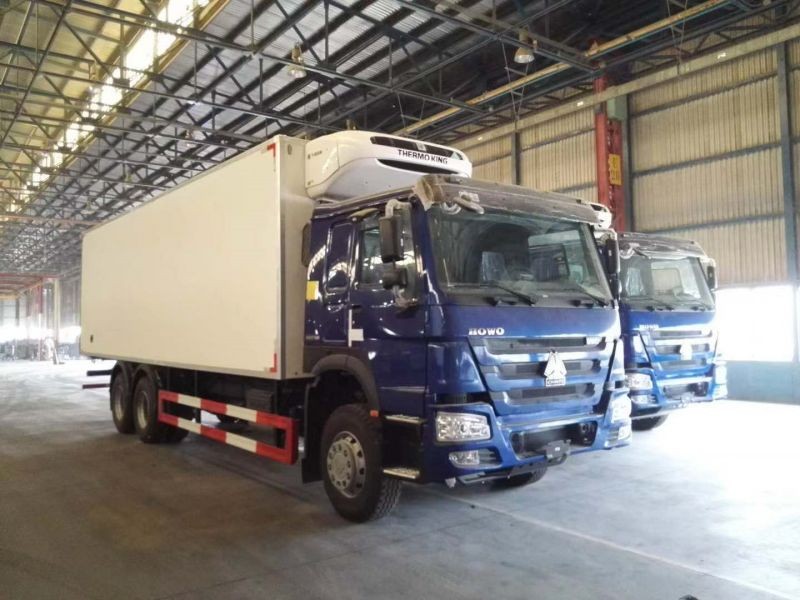

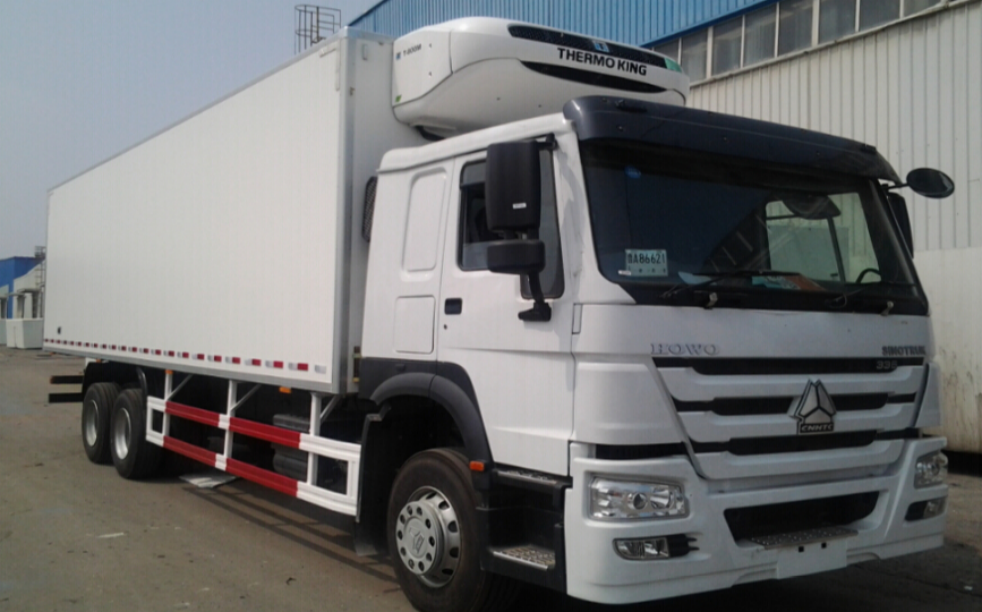

SINOTRUK HOWO 6x4 Refrigerator Truck

Category： SINOTRUK special purchase trucks
INQUIRY EMAIL

SINOTRUK HOWO 6x4 Refrigerator Truck

Adv

l Low weight.

l Stable and security.

l Balanced structural strength.

Production description:

SINOTRUK 6x4 reefer truck is a closed van vehicle used to transport frozen or preserved goods. The refrigerated truck is actually called a refrigerated and insulated truck. It is a kind of mechanical refrigerated vehicle,which is equipped with a vapor compression refrigeration unit, and the temperature in the vehicle is automatically controlled, which is very suitable for the transportation of short, medium, long distance or special refrigerated goods. The compartment has good heat insulation, reduces the temperature outside incoming, the refrigeration device occupies a small space, is light in weight, safe and reliable.

The overall length of the truck is mm, and The tare weight is ton.

At present, most of the large domestic refrigerated truck manufacturers adopt the "sandwich" board bonding technology of piece-by-piesce assembly, and the inner and outer skins are made of composite materials, such as glass steel plate, color steel plate, aluminum alloy and other materials.

Cabin	Driving type 6x4 LHD
Cabin	HOWO 76 cab, with air condition and one beds. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H) mm	11600×2550×3850
	Wheel base (mm)	5800+1400
	Wheel track (front/rear) (mm)	2022/1830
Weight in KGS	Tare Weight	11800
	payload	30000
	Front axles loading capacity	1x7000
		2x16000
Max. driving speed（km/h）		101
Engine	Brand	SINOTRUK
	Model	WD615.47
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power（HP)	371
	Emission standard	Euro Ⅱ
Gearbox	HW19710,10 Forwards gear & 2 reverse gear
Steering	ZF8098 power steering, hydraulic steering with power assistance
Clutch	Reinforced diaphragm clutch, diameter 430 mm
Fuel tank	400 L
Tire	315/80R22.5 tubeless tyre, 11 pieces including one spare
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake

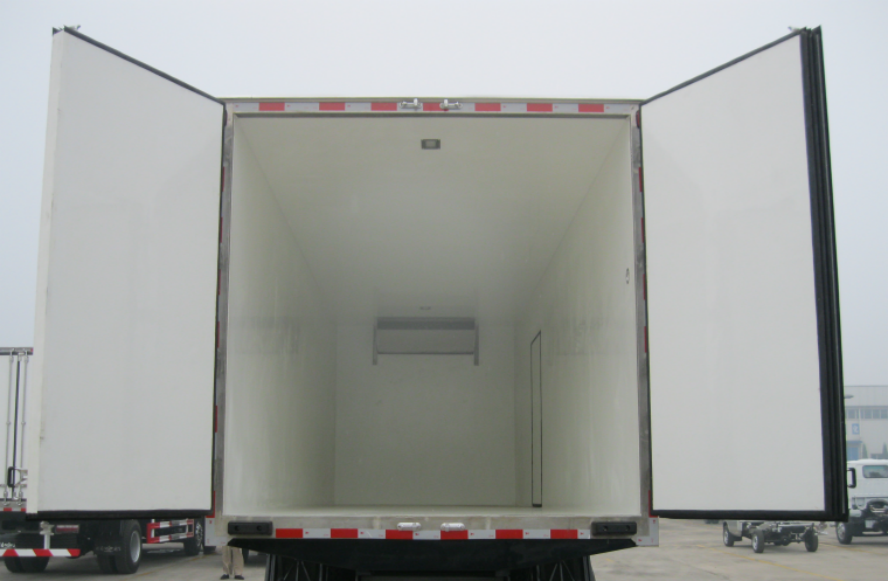

Cargo box	Inner size 8700x2300x2300(mm), one rear door. Bottom floor 105mm, side wall 95mm.High density polyurethane insulating layer.
Cooling system	America brand Termo King T800 independent cooling system with backup electric power system. Working temperature: - 20℃ Independent generator: TK370, 11.2KW. Compressor: model X214, High tensil aluminum alloy material, displacement: 228cm³ Emergency power supply: 380V/3Ph/50Hz, 4.5kw Cryogen: 3.9kg.
