HOWO 6X4 cargo truck with crane

HOWO 6X4 cargo truck with crane

SINOTRUK 6X4 boom truck

l Easy operation.

l Stable operation.

l Accurate positioning.



Production description:

SINOTRUK 6X4 boom truck refers to a crane truck, is a kind of equipment that realizes the lifting, turning, and hoisting of goods through a hydraulic lifting and telescopic system, and is usually assembled on a truck. It is generally composed of a truck chassis, cargo compartment, power take-off, and crane. The straight arm with the truck crane, can be used in general occasions, its characteristic is the arm length.

It includes telescopic boom , hook , rotary mechanism , lifting device , frame and other telescopic lifting device. It is relatively more convenient, suitable for the open space. In the operation process, it is completed with a wire rope hoisting mechanism, stable operation and accurate positioning. Its arm adopts the retractable lifting mechanism of the wire rope, which can strictly control the lifting and lowering of the hanging object, which is easier to control vertical take-off and landing.



Product specification

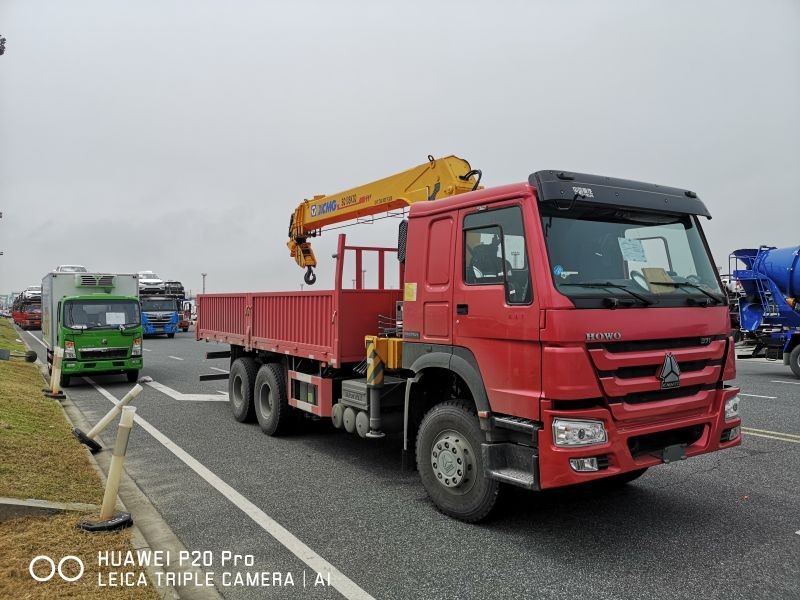

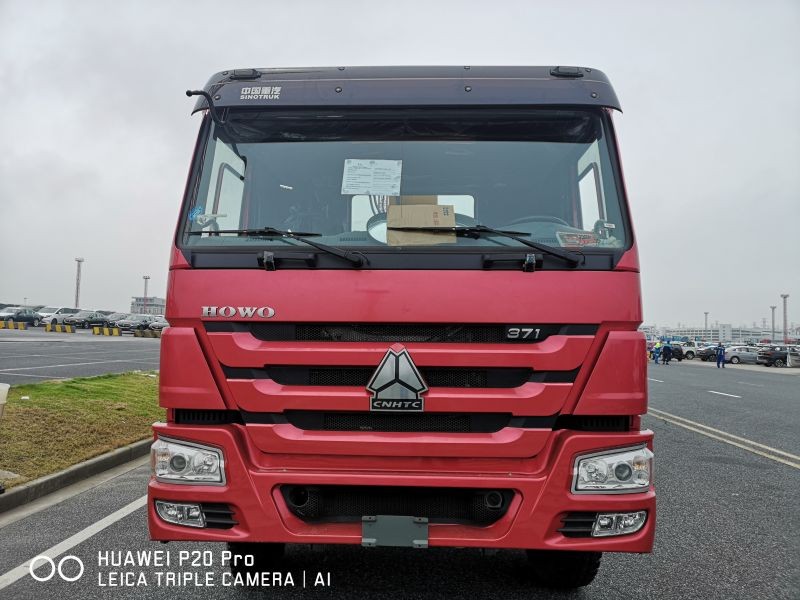

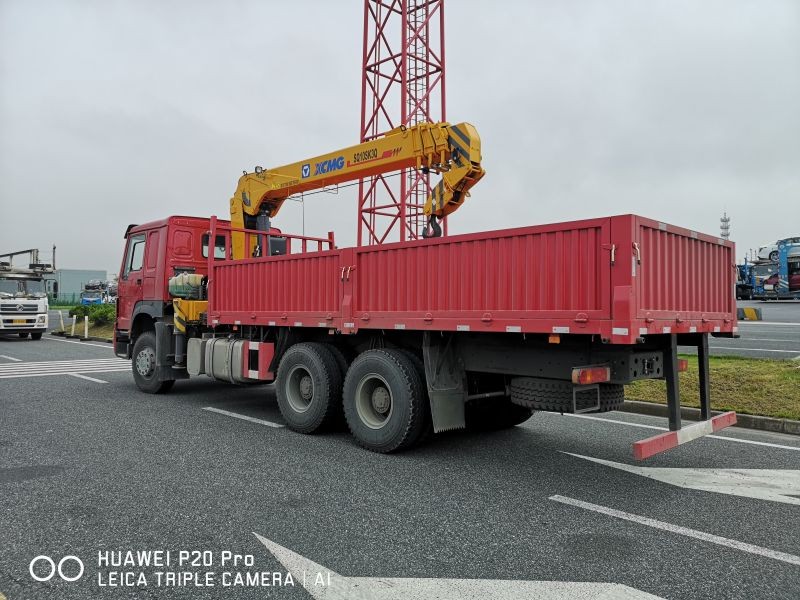

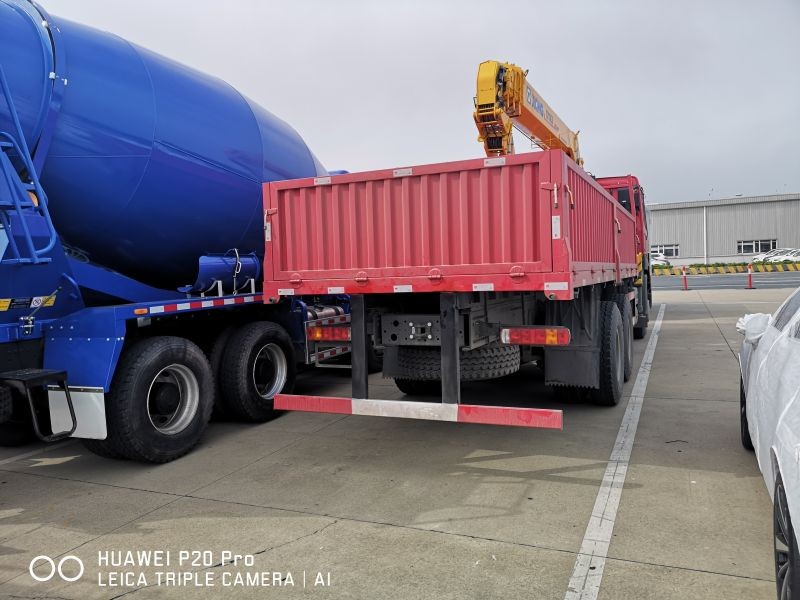

HOWO 6x4 truck with XCMG 6T Crane

Cabin	2080 cabine
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		7200x2300x2300
	Wheel base  (mm)		3300
	Wheel track  (front/rear) (mm)		1798/1764
Weight in KGS	Tare Weight			6200
	Front axles loading capacity			1*2700
	Rear axles loading capacity			1*7200
Engine		Brand		YUCHAI
		Horse Power（HP)		116HP
		Emission standard		Euro III
Gearbox		WLY6T46 Manual gear box, 6 speed
Tire		7.0R16 tyres,7pieces
Crane specifications	Brand : XCMG
	Type: Telescopic
	Max lift capacity: 14000 kg
	Max working radius 15.8 m, Max lifting height : 17.8 m



Specifications of the Crane



High lights:

1. Wider working radius.

2. It provides more vertical take-off and landing control.

3. Easier to load.

Product Details





The shipment:

Most of the boom trucks are suitable for RORO shipment and bulk shipment. We have professional logistic department to provide efficient and economical service.



Factory





FAQ

1. How to order ?

Step 1, please tell us what model and quantity you need;

Step 2, then we will make a Pl for you to confirm the order details;

Step 3, when we confirmed everything, can arrange the payment;

Step 4, finally we deliver the goods within the stipulated time.



2. What is your payment term?

Our payment term is T/T- 30% deposit, balance paid before delivery. Or 100% irrevocable L/C at sight.



3.How about the price?

We are factory and able to give you the lowest price than market one, and we have a policy that for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.



4. Do you provide equipment operation training?

Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.



5.What kind of logistic service do you supply?

FOB,CIF,DAR,ETC.
