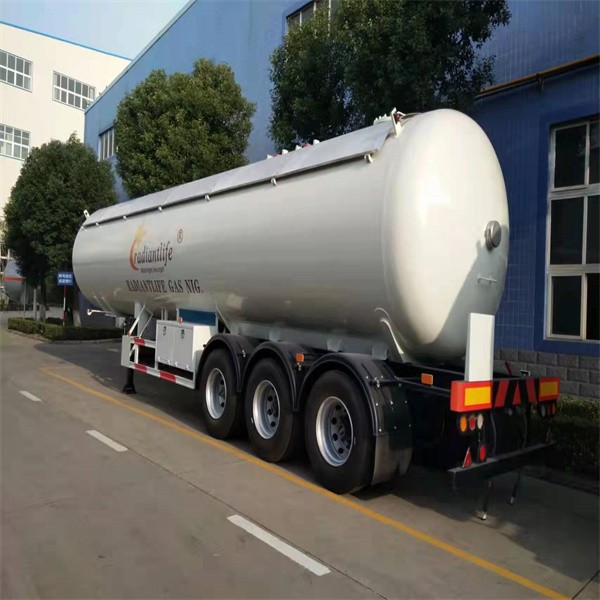

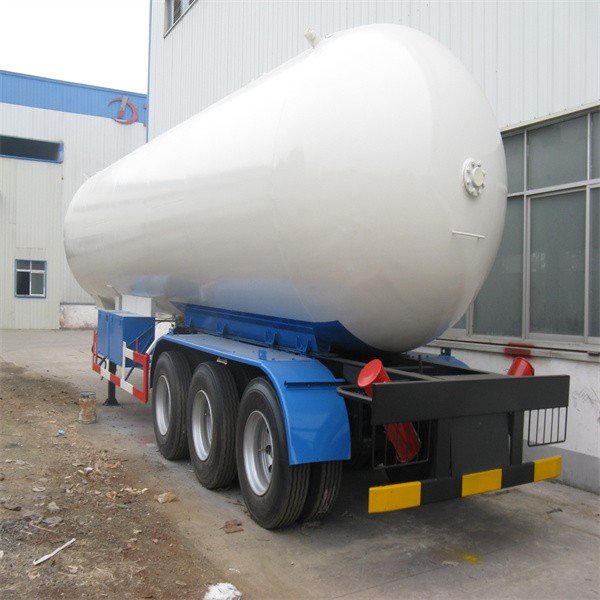

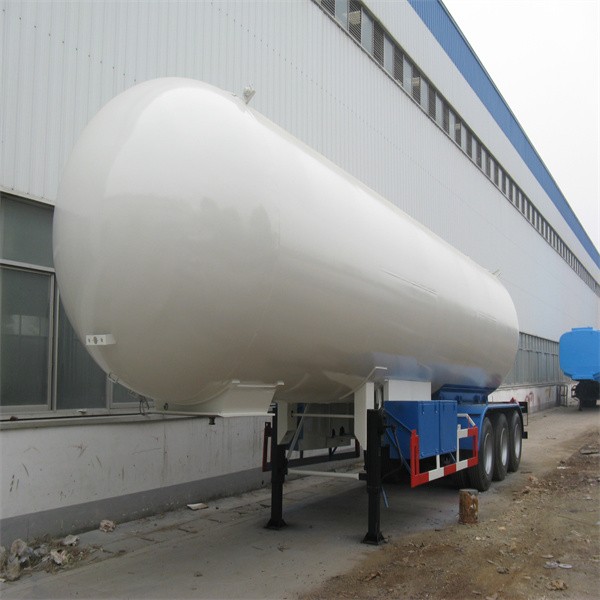

LPG tanker semi trailer

Axle

13ton FUWA brand or BPW

Suspension

Mechanical suspension with leafing spring or air suspension with air bag

Tire

12R22.5, 315/80R22.5, 13R22.5, China Top brand

Kingpin

JOST 3.5"

Landing gear

JOST brand two speed, manual operating

Design Pressure

1.61 MPa

Design Temperature

-20 / 50℃

Environmental Temperature

-20 / 50℃

Working Temperature

-20 / 50℃

Tank volume & Material

25000 - 60 000L, Q345R/14MM for tanker body, Q345R/ 18mm for end plate

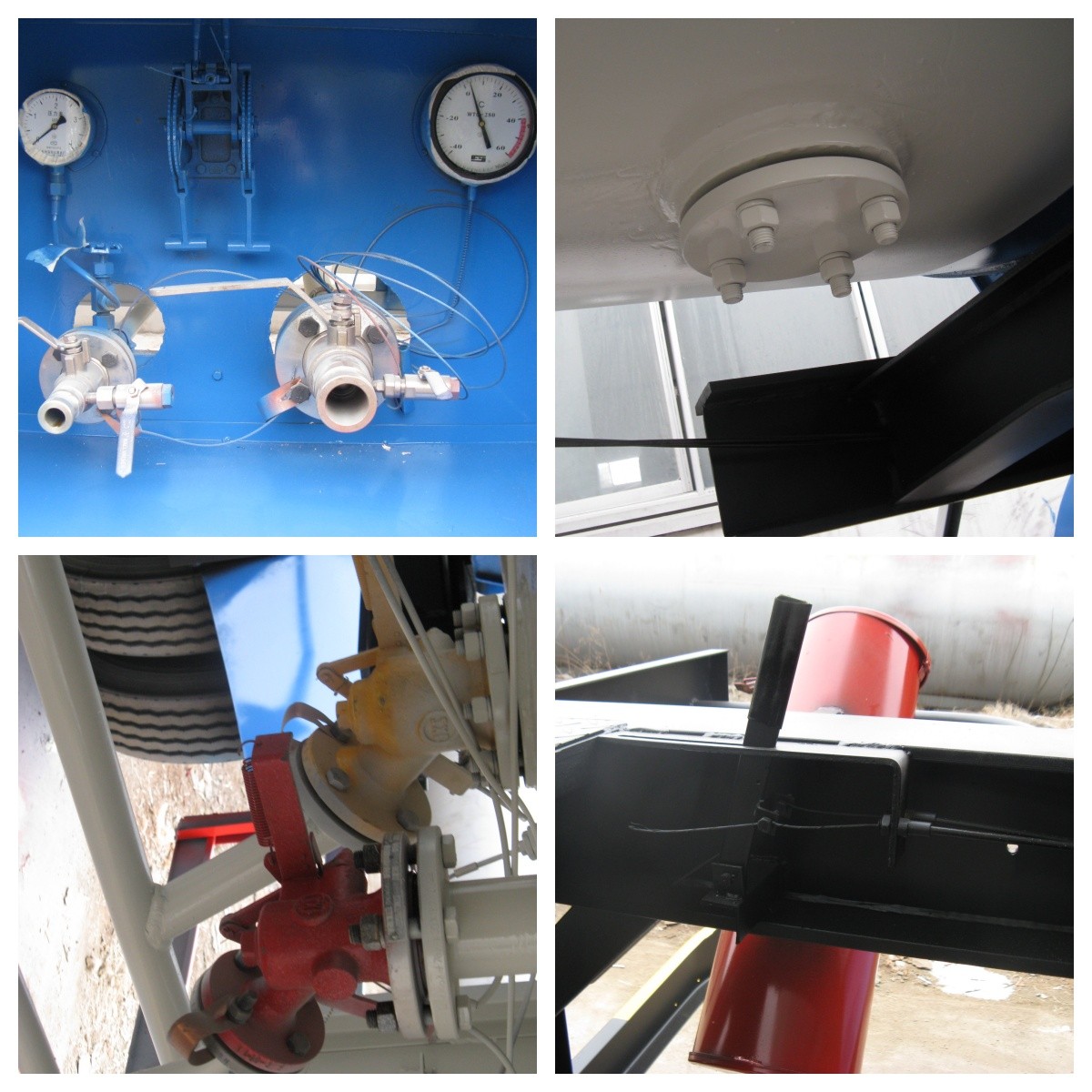

Others

Quick couping ball valve
Quick couping ball valve
Liquid level gauge
Pressure Gauge
Thermometer
