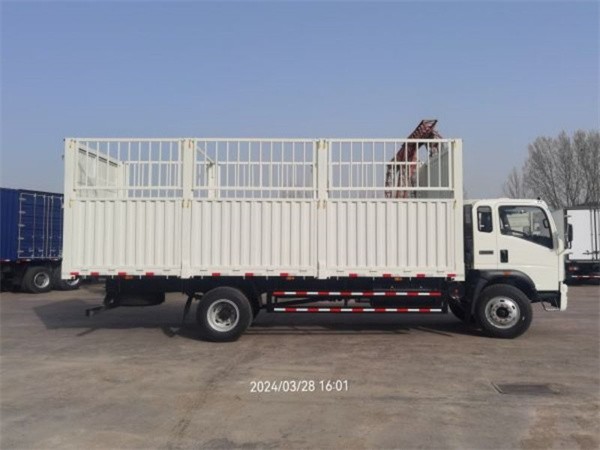

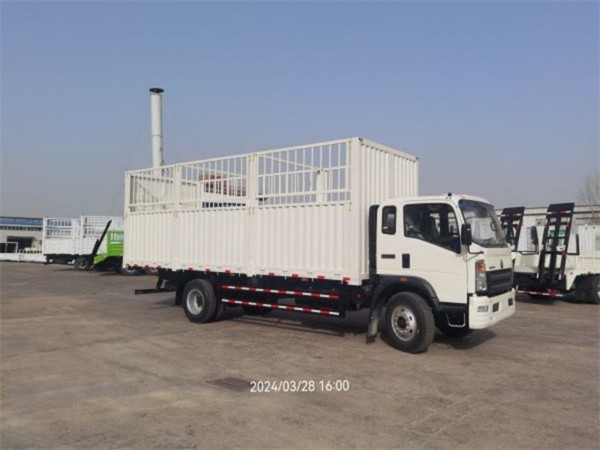

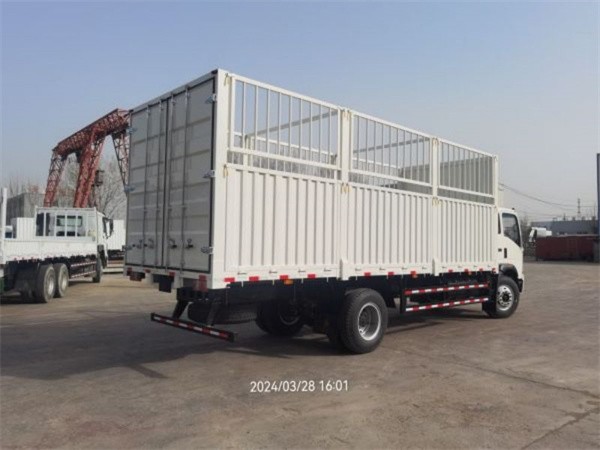

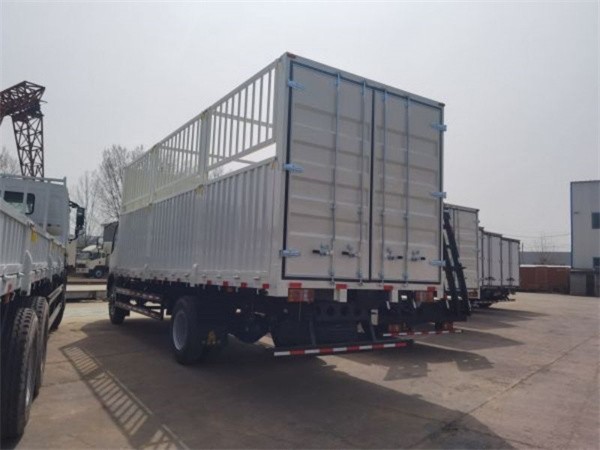

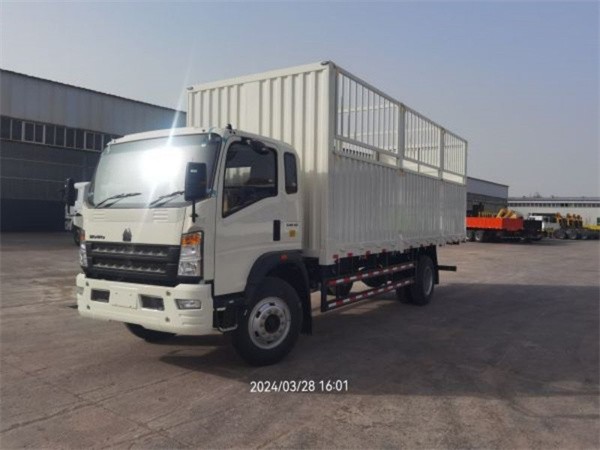

HOWO stake cargo truck 10 ton

Category： 9 ton - 12 ton truck
INQUIRY EMAIL

HOWO 4X2 Cargo Truck 10 ton

TruTruck introduction:

Warranty: 2 years
Local after sales service: Offered free of charge, there is service team in most of countries in the world
Training: Offered free of charge
Spare parts: Relative spare parts are offered free of charge.
Payment: 30% deposit before production, 70% balance before shipping, all by TT or LC 3 months / 6 months 1 year
Quality Inspection: Before truck delivery, relative inspection certificate issued by third party, such as BIVAC, SGS, SONCAP can be done, with cost of buyers'.
After sales service: Training will be offered free of charge for order more than 10 units

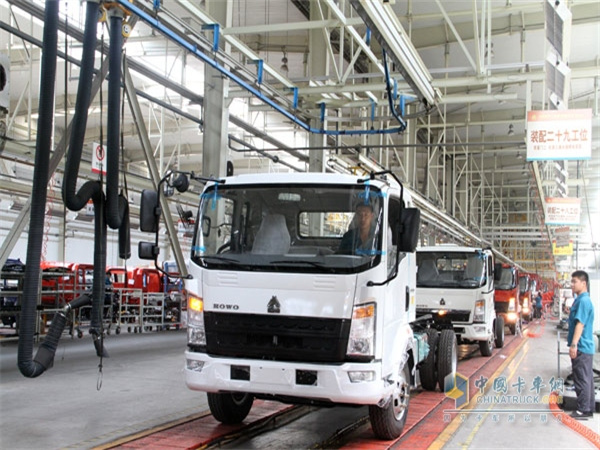

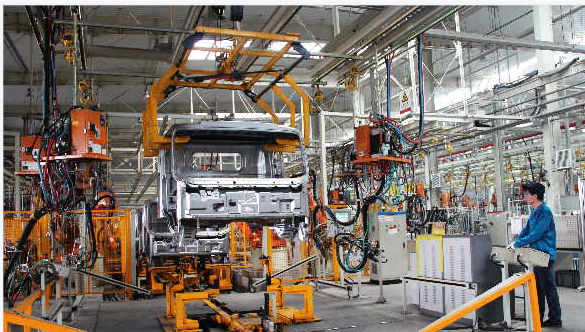

Trucks production line:

Cabin

Driving type 4x2  LHD

2080 cabin with two seats with bed, 70°tillable to the front

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

9500×2550×2650

Wheel base (mm)

5200

Wheel track (front/rear) (mm)

1605/1520

Approach/Departure angle(°)

20/18

Weight in KGS

Tare Weight

5500

payload

10000

Front axles loading capacity

1x3200

Rear axles loading capacity

1x8000

Max. driving speed（km/h）

90

Engine

Brand

Yuchai

Type

4 cylinder in line, Turbocharged and Intercooled

Model

4102

Horse Power（HP)

160

Emission standard

Euro Ⅱ

Gearbox

WLY6T51 gearbox, 6-speed Forwards gear & 1 reverse gear

Tire

9.00R20  7pcs including one spare tire

Carriage Size(mm)

6800×2300×200

Trucks shipment:
