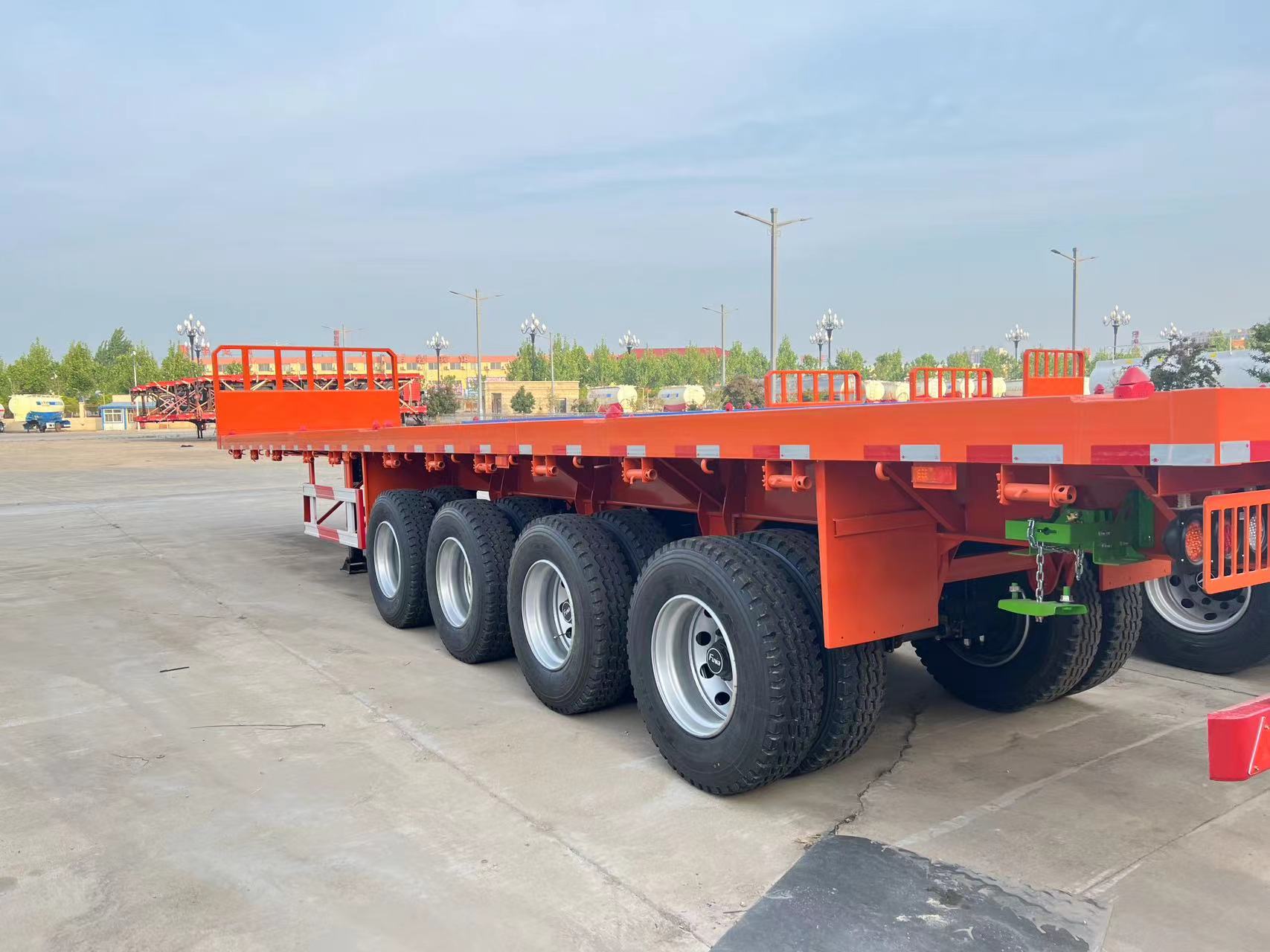

4 axles faltbed semi trailer 70-80ton

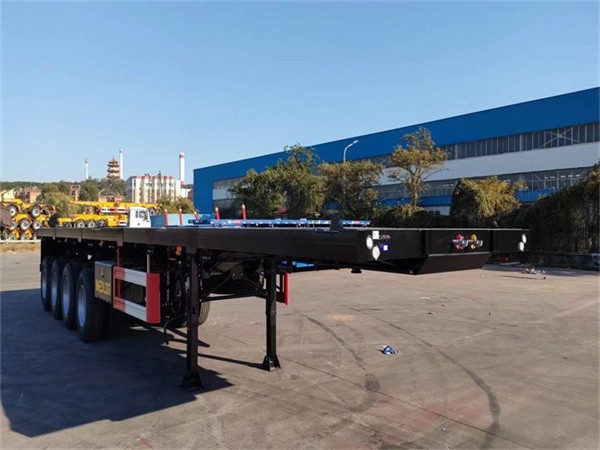

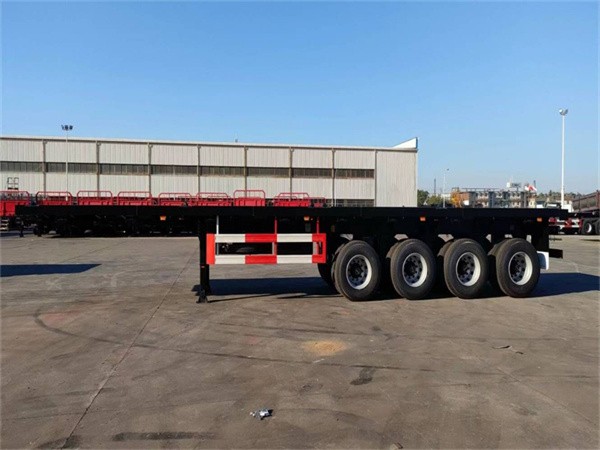

40ft Flat bed semi trailer

To get quick quotation, please contact whatsapp: 0086 18205413661

Polyurethane paint for all of our tri axle container flatbed semi trailer which has high adhesion, more beautiful color.

Specifications:

DIMENSIONS
Tare Weight		7900kg
Overall Length		12400mm
Overall Width		2480mm
Payload		45000kg
Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam & Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle	3 axles
	FUWA/ Brand 13ton
Suspension	Heavy duty mechanical suspension
Floor	3mm checker plate
Leaf Spring	13 piece Leaf spring
King Pin	JOST brand 2” Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	9.0-22.5 wheel rim 13 pieces
Tire	12R22.5 tire with one spare tire. 13 pieces
Twist Lock	12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
