40FT container side loader semi trailer
To get quick quotation, please contact whatsapp: 0086 18205413661
CIMC Container side loader use FUWA / BPW axles, XCMG brand crane, mechancial suspension. With strong, powerful, durable advantages.
The side lifter trailer technology can effectively solve the problem of no loading and unloading machinery. The military of many countries have been equipped with container loading trailer.
Specifications:
Item
Unit
Parameters
Lifting Performance
Max. lifting capacity
kg
37000
Max. working range
mm
4000
Max. stabilizer outreach
mm
3200
Weight
Curb mass
kg
14500
Mass of sidelifter
kg
7250
Maximum gross mass
kg
52000
Outline dimension of semi-trailer(L×W×H)
mm
14100×2500×4000
Outline dimension of sidelifter(L×W×H)
mm
1020×2500×2490
Wheel base
mm
8000+1350+1350
Track(front axle/rear axle)
mm
1820/1820/1820
Front overhang / Rear overhang
mm
-/2370
Approach angle/Departure angle
°
-/13
Dimension

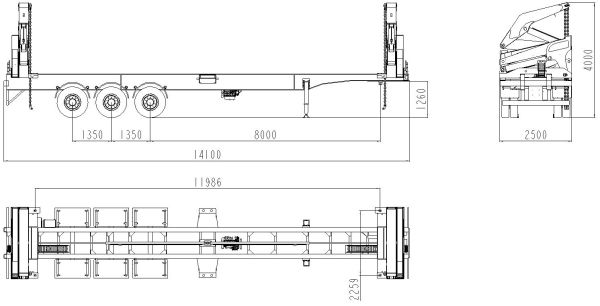

Drawing：
