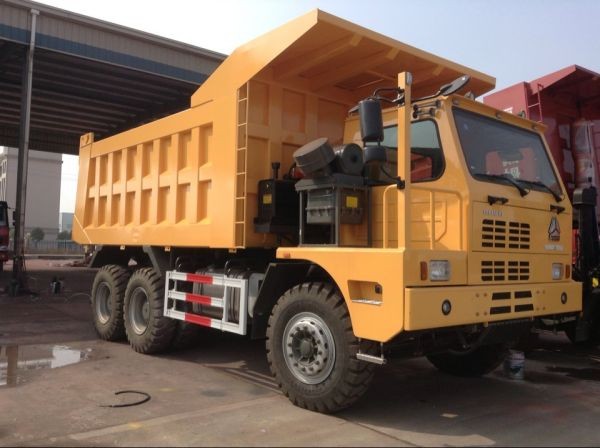

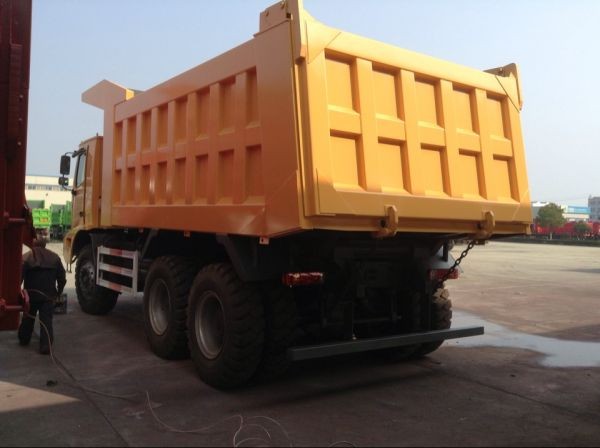

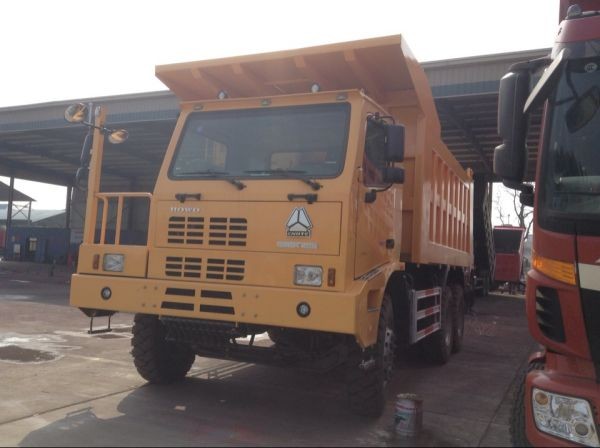

SINOTRUK HOWO 6X4 mining dump truck
What we can do:
1. Quality Inspection: Before truck delivery, relative inspection certificate issued by third party, such as BIVAC, SGS, SONCAP can be done, with cost of buyers'.
2. Spare Parts of Truck: All parts can be purchased directly from our factory beore or after the truck delivery.
3. After sales service: Training will be offered free of charge for order more than 10 units
4. Warranty： 2 years for engine, gearbox and axle

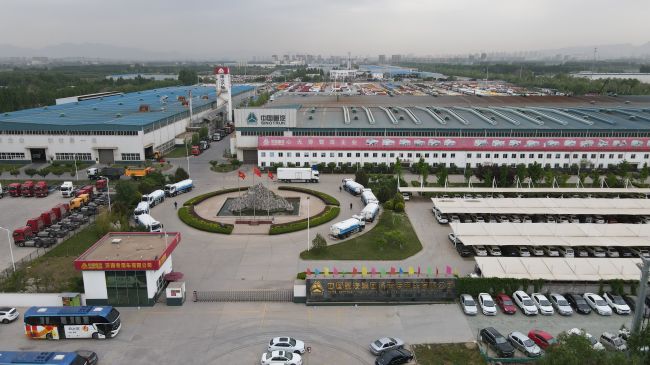

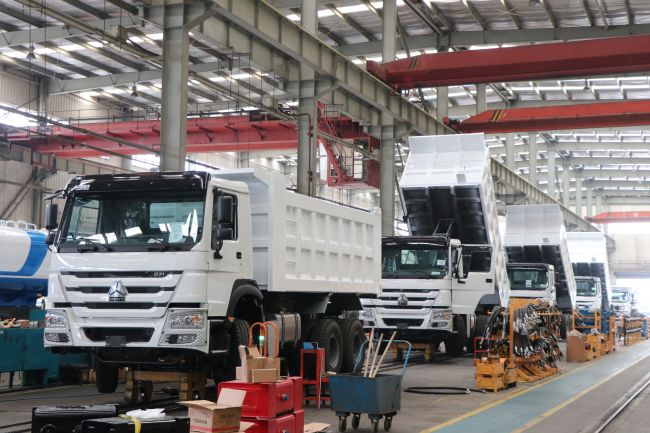

Factory photos:
Specifications:
Cabin
Driving type 6x4
HW7D cabin
Vehicle Main Dimensions
Overall dimensions (L x W x H)mm
8800 x 3400 x 4350
Wheel base (mm)
3800+1500
Weight in KGS
Tare Weight
20000
payload
70000
Front axles loading capacity
1 x 12000
Rear axles loading capacity
2 x 26000
Max. driving speed（km/h）
50
Engine
Brand
Sinotruk
Model
D12.42
Type
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power（HP)
420HP
Emission standard
Euro Ⅱ
Gearbox
HW21712, 12 Forwards gear & 2 reverse gear
Clutch
Reinforced diaphragm clutch, diameter 430mm
Steering Gear
ZF 8118, power steering, hydraulic steering with power assistance
Fuel tank (L)
500
Tire
14.00-25 tyre 11 pieces with one spare
Brakes
Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Bin size
5600*3100*1800 mm, side is 10 mm, bottom is 12mm
Hydraulic system
Front positioned, HYVA cylinder
