SINOTRUK HOWO 8x4 dump truck

Category： SINOTRUK dump trucks
60 ton dump truck
HYVA brand lifting system
Resistant steel NM450, Hardox steel
INQUIRY EMAIL

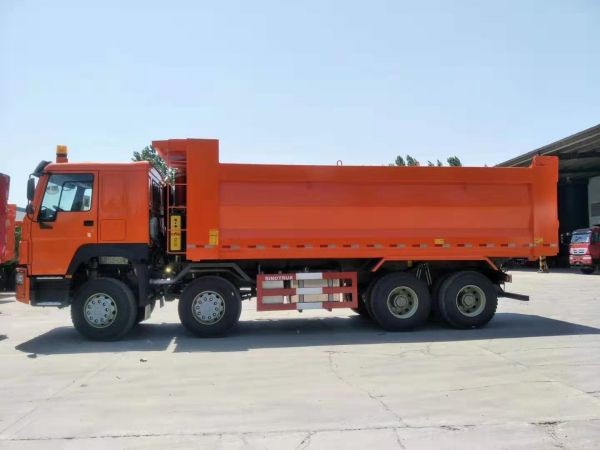

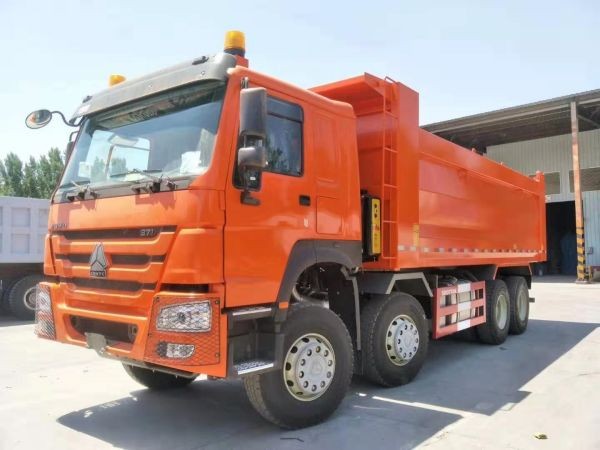

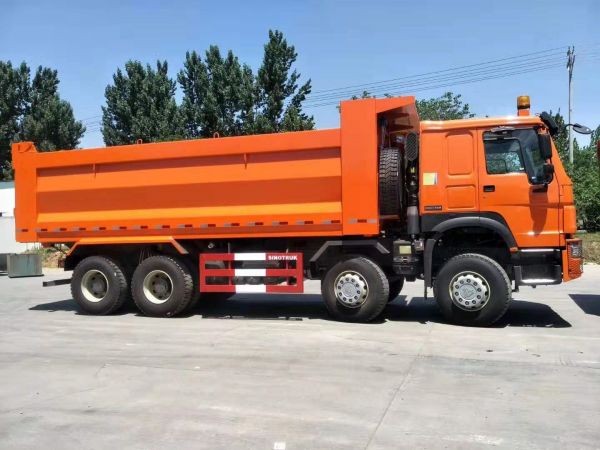

SINOTRUK HOWO 8X4 dump truck

What we can do:

1. Quality Inspection: Before truck delivery, relative inspection certificate issued by third party, such as BIVAC, SGS, SONCAP can be done, with cost of buyers'.

2. Spare Parts of Truck: All parts can be purchased directly from our factory beore or after the truck delivery.

3. After sales service: Training will be offered free of charge for order more than 10 units

4. Warranty： 2 years for engine, gearbox and axle

Factory photos:

Specifications:

Cabin	Driving type 8x4 LHD
Cabin	HW76 cab, two seats and one bed, with A/C 70°hydraulically tillable to the front
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	10800×2 550×3 600
	Wheel base (mm)	1800+3800+1350
	Wheel track (front/rear) (mm)	2022/1830
	Approach/Departure angle(°)	16/23
Weight in KGS	Tare Weight	15200
	payload	45000
	Front axles loading capacity	VGD 95 2x9500
	Rear axles loading capacity	MCP 2x16000
Max. driving speed（km/h）		75
Engine	Brand	Wei chai brand
	Model	WP 10
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power（HP)	380HP, 400HP, 430HP
	Emission standard	Euro Ⅱ
Gearbox	HW19710, 10 Forwards gear & 2 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF 8118,power steering, hydraulic steering with power assistance
Fuel tank (L)	300
Tire	12.00R20 tyre 13 pcs including one spare tire
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Box	730023001500mm, side is 8mm, front and bottom 10mm HYVA brand, front lifting
